OUTPUT VOLTAGE: 48VDC AT 0.5A
INPUT VOLTAGE: 90-260VAC AT 47-63HZ
INPUT CURRENT: 0.3A AT 120VAC, 0.2A AT 230VAC
INRUSH CURRENT: <15A PEAK AT 120VAC, <30A PEAK
EFFICIENCY: 70+%
OUTPUT RIPPLE: 1% MAX
SWITCHING FREQUENCY: 200KHZ
LINE REGULATION: +/- 0.5%
LOAD REGULATION: +/- 1%
SURGE PROTECTION: COMMON MODE
CLAMPING PROTECTION: 11V DATA, 77.5V POWER
MAX SURGE DISCHARGE: 1200A (8/20US) POWER
PEAK PULSE CURRENT: 36A (10/1000US DATA)
SHUNT CAPACITANCE: <5PF DATA
RESPONSE TIME: <1NS
INTERFACE
AC CONNECTOR: IEC-320 C6
DATA IN/POE RJ45 SHIELDED SOCKET
80% CURRENT INDICATOR: POWER LED WILL CHANGE COLOR
PHYSICAL
OPERATING TEMPERATURE: -10C TO +60 C
STORAGE TEMPERATURE: -20 TO +85 C
OPERATING HUMIDITY: -10C TO +60 C
SIZE: (LXWXH) 85 X 55 X 33 (MM)
WEIGHT 4 OZ
INPUT VOLTAGE: 90-260VAC AT 47-63HZ
INPUT CURRENT: 0.3A AT 120VAC, 0.2A AT 230VAC
INRUSH CURRENT: <15A PEAK AT 120VAC, <30A PEAK
EFFICIENCY: 70+%
OUTPUT RIPPLE: 1% MAX
SWITCHING FREQUENCY: 200KHZ
LINE REGULATION: +/- 0.5%
LOAD REGULATION: +/- 1%
SURGE PROTECTION: COMMON MODE
CLAMPING PROTECTION: 11V DATA, 77.5V POWER
MAX SURGE DISCHARGE: 1200A (8/20US) POWER
PEAK PULSE CURRENT: 36A (10/1000US DATA)
SHUNT CAPACITANCE: <5PF DATA
RESPONSE TIME: <1NS
INTERFACE
AC CONNECTOR: IEC-320 C6
DATA IN/POE RJ45 SHIELDED SOCKET
80% CURRENT INDICATOR: POWER LED WILL CHANGE COLOR
PHYSICAL
OPERATING TEMPERATURE: -10C TO +60 C
STORAGE TEMPERATURE: -20 TO +85 C
OPERATING HUMIDITY: -10C TO +60 C
SIZE: (LXWXH) 85 X 55 X 33 (MM)
WEIGHT 4 OZ

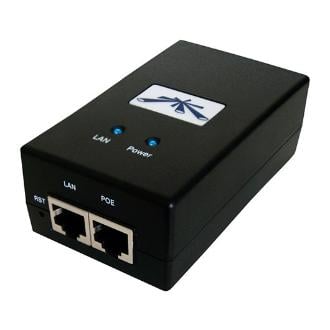

Comprar Inyector PoE Ubiquiti 24W 0.5A Gigabit
